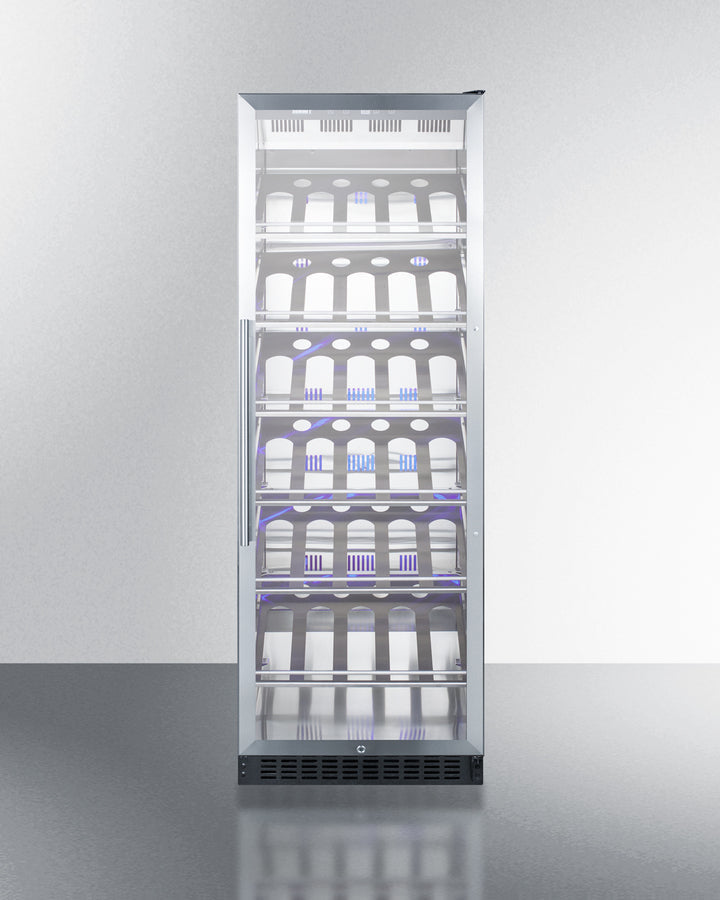

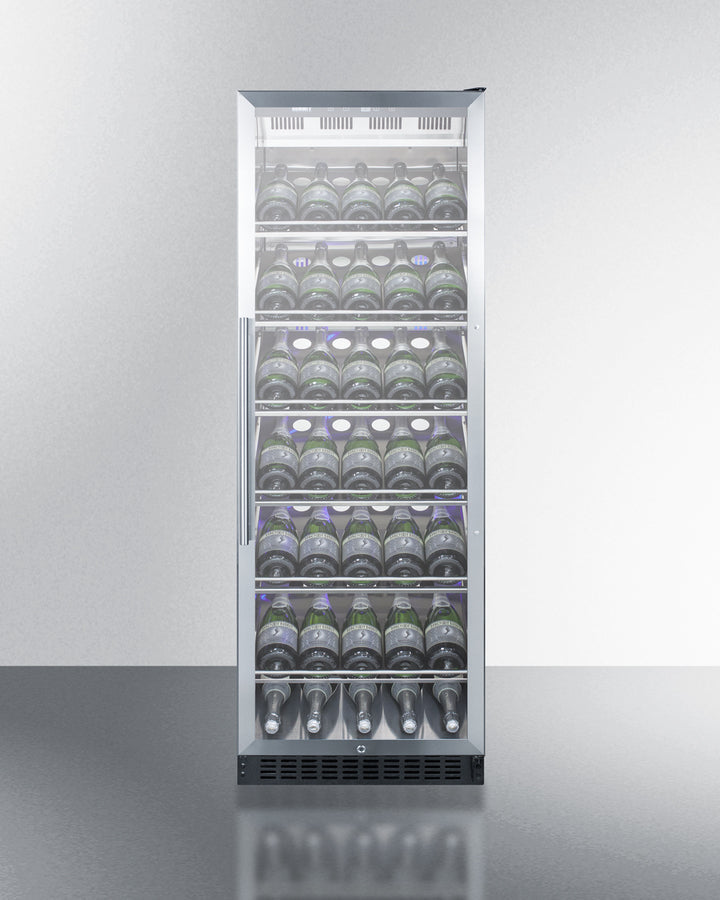

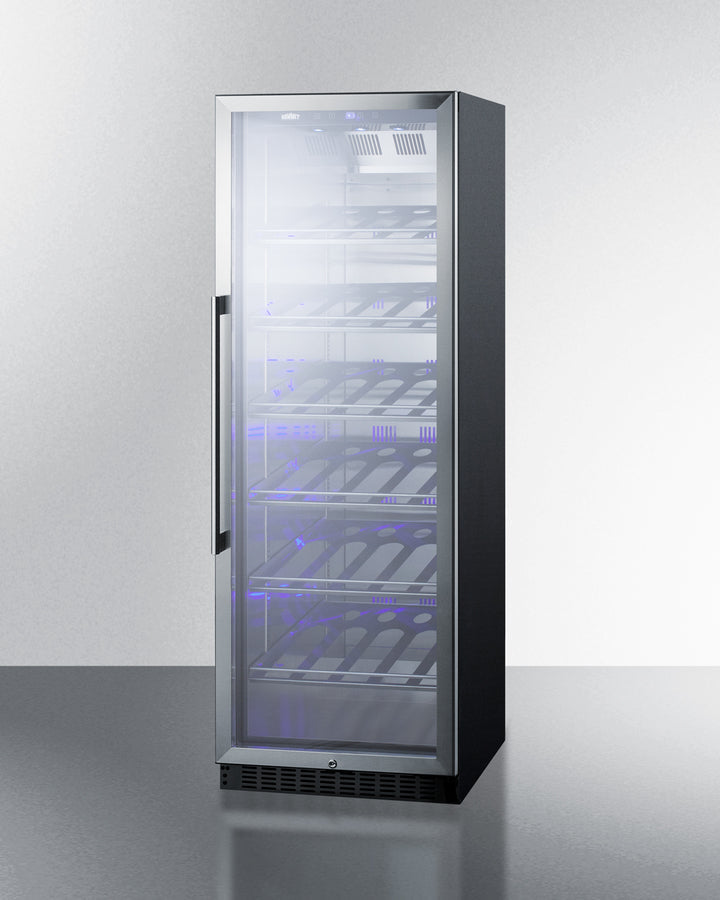

Summit Commercial 24" Wide Single Zone Right Hinge Commercial Wine Cellar
Summit Commercial 24" Wide Single Zone Right Hinge Commercial Wine Cellar
Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.
The SCR1401CH is an upright wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, while the large 12.6 cu.ft. The self-closing stainless steel trimmed door includes a pro style handle and factory-installed lock for added security. This model comes with a right hand door swing. For a left hand version, see the SCR1401LHCH.

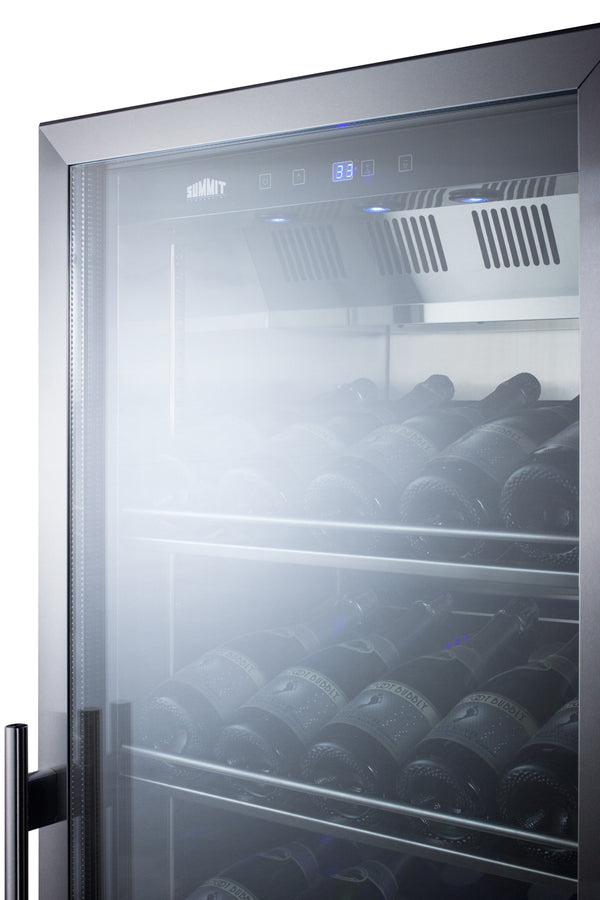

Inside, the SC1401CH includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel offers a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine. Additional features include an audible high temperature alarm, open door alarm, temperature memory function, and sabbath mode setting.
The SCR1401CH comes with a fully finished jet black cabinet. Additional choices are available in stainless steel, as well as alternate sizes. Browse our website to explore our full lineup of commercially approved wine cellars.
Dimensions
- 69.75" H x 23.63" W x 23.75" D (177cm H x 60cm W x 60cm D)
Specifications
| Overview | |
| Height of Cabinet | 69.75" (177 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.75" (60 cm) |
| Depth with Handle | 25.63" (65 cm) |
| Depth with door at 90° | 46.75" (119 cm) |
| Capacity | 12.6 cu.ft. (357 L) |
| Bottles | 35 bottles |
| Defrost Type | Frost-Free |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.7 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 250.0 lbs. (113 kg) |
| Shipping Weight | 220.0 lbs. (100 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101059822 |
| Wine Cellar | |
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | No |
| Shelf Type | Steel |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.76 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 59.75" (152 cm) |
| Interior Width 1 | 20.0" (51 cm) |
| Interior Depth 1 | 16.5" (42 cm) |
| Temperature Range | 36 to 68ºF |
| Interior Height 2 | 4.5" (11 cm) |
| Interior Width 2 | 20.0" (51 cm) |
| Interior Depth 2 | 4.5" (11 cm) |
| Sabbath Mode | Yes |
Features
- Commercially approved
- Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use
- Champagne racks
- Stainless steel shelves are specially sized to store wider wine and champagne bottles
- Bottle display
- Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves
- Interior LED lighting
- Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
- Slim fit
- Just 24" wide and deep for an easy fit in any setting
- Frost-free operation
- No-frost convenience requires no manual defrosting
- Stainless steel interior
- Walls are constructed from stainless steel for added strength and easy cleanup
- Double pane tempered glass door
- Heat-safe glass door with stainless steel trim offers full display all the way down to the floor
- Self-closing door
- Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
- Digital thermostat
- Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit
- Wide temperature range
- Interior can be set between 36 to 68ºF, allowing users to adjust for red wine, white wine, or champagne
- Factory installed lock
- Keyed lock for a secure interior (2 keys included)
- Fan-forced cooling
- Internal fan ensures the interior is evenly cooled from top to bottom
- High temperature alarm
- Alarm sounds if the interior temperature rises out of suggested range
- Professional handle
- Attractive design in stainless steel to complete the look
- Right hand door swing
- For this unit with a left hand door swing, order SCR1401LCH
- Sabbath mode setting
- Optional setting lets you disable the lighting and alarm for up to 48 hours
- Right angle plug
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Temperature Memory Function
- Unit will retain its last settings when power is restored in the event of power loss
- Fully finished black cabinet
- Allows the unit to be used freestanding
- 100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Downloads
- BROCHURE
- USE & CARE
